TP-LINK

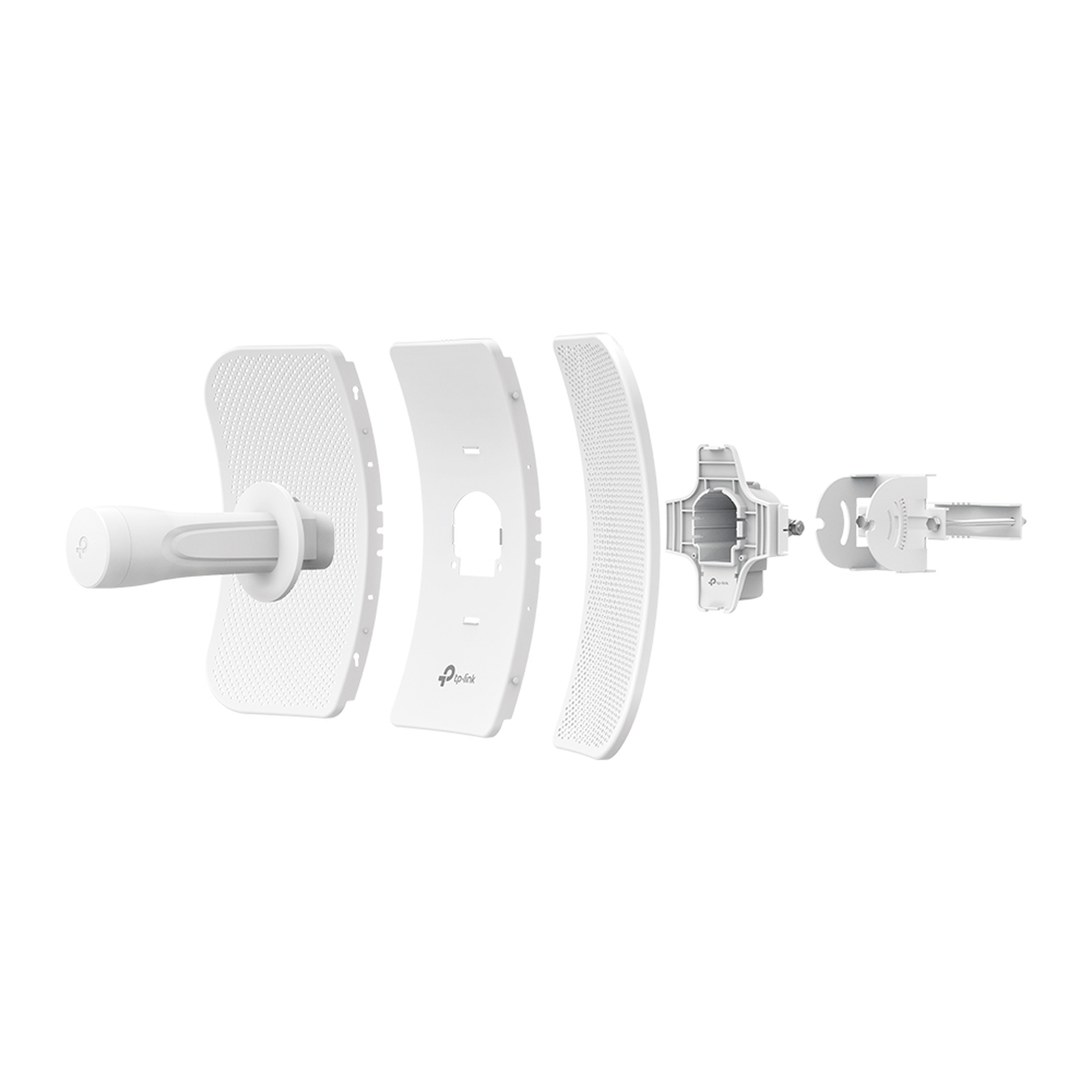

CPE de Exterior de 5 GHz a 300Mbps, Antena direccional de 23dBi, potencia de 27 dBm, PoE pasivo

Name: CPE de Exterior de 5 GHz a 300Mbps, Antena direccional de 23dBi, potencia de 27 dBm, PoE pasivo
Brand: TP-LINK
SKU: CPE610
Price: 1465.00 MXN
Availability: InStock

SKU:CPE610

$ 1,465.00 MXN

Oferta Agotado

Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.

200 en existencias

Solicita Más Stock

Cantidad

1
Procesador	Qualcomm 560MHz CPU, MIPS 74Kc
Memoria	64MB DDR2 RAM,8MB Flash
Interface	1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button
Fuente de Alimentación	Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Dimensiones (W X D X H)	366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Dimensiones	360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount)
Ganancia de Antena	23dBi
Cobertura de Antena	9°(Azimuth), 7°(Elevation)
Protección	15KV ESD Protection 6KV Lightning Protection
Cercado	Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design

1
Estándares Inalámbricos	IEEE 802.11a/n
Protocolo Propietario	TDMA Mode (with Pharos MAXtream enabled)
Velocidades Inalámbricas	Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Frecuencia	5.15~5.85GHz
Potencia de Transmision	Max. 27dBm (Adjustable power by 1dBm)

1
Configuracion De Red	WAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
Configuraciones Inalámbricas	Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Administración	Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
Herramientas de sistema	Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
Optimizaciones a Nivel de Sistema	Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog

1
Dimensions(W x D x H)	85.8×43.9×29.7 mm
Interfaces	1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data)
Botón	Remote Reset Button
Power Status LEDs	Green
Input	100-240VAC, 50/60Hz
Output	24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Eficiencia	>84.29%
Certifications	CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

1
Certificacion	CE, FCC, RoHS, IP65
Contenidos del Paquete	Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
Requisitos del Sistema	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Ambiente	Operating Temperature: -40â„ƒ~70â„ƒ (-40â„‰~158â„‰) Storage Temperature: -40â„ƒ~70â„ƒ (-40â„‰~158â„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing

Ver todos los detalles
