ANDREW / COMMSCOPE

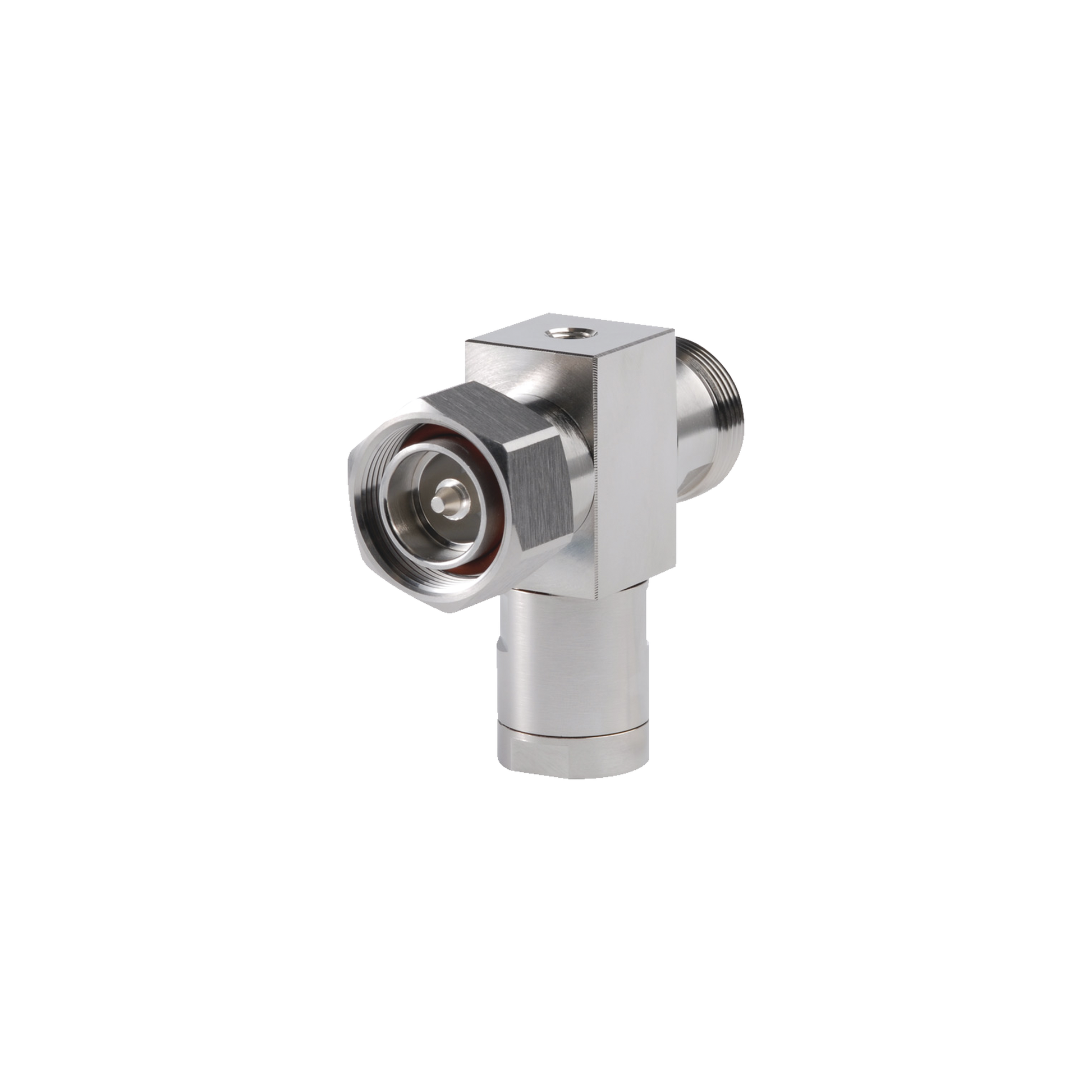

Arrestor Plus® Dual Band Quarterwave Surge Arrestor (T-shaped), 806–960 MHz and 1700–2170 MHz, with interface types DIN Female and DIN Male
Arrestor Plus® Dual Band Quarterwave Surge Arrestor (T-shaped), 806–960 MHz and 1700–2170 MHz, with interface types DIN Female and DIN Male
SKU:APT-DFDM-DB
Precio habitual
$ 1,464.00 MXN
Precio habitual
Precio de oferta
$ 1,464.00 MXN
Precio unitario
por
Impuestos incluidos.
Los gastos de envío se calculan en la pantalla de pago.
Agotado
No se pudo cargar la disponibilidad de retiro
General Specifications
- Device Type: dc Block
- Interface: 7-16 DIN Female
- Interface 2: 7-16 DIN Male
- Harmonized System (HS) Code: 854420 (Coaxial cable and other coaxial electric conductors)
Electrical Specifications
- Operating Frequency Band:
- 1710 – 2000 MHz
- 2000 – 2170 MHz
- 806 – 960 MHz
- 960 – 1710 MHz - 3rd Order IMD -117.0 dBm | -160.0 dBc
- 3rd Order IMD Test Method Two +43 dBm carriers
- Average Power 3000.0 W @ 900 MHz
Physical Characeristics
- Dimensions (Height x Length x Width);
(74.23 mm x 76.97 mm x 36.07 mm) | (2.92 in x 3.03 in x 1.42 in) - Weight 434.99 g | 0.96 lb
- Attenuation, Ambient Temperature 20 °C | 68 °F
- Average Power, Ambient Temperature 40 °C | 104 °F
